Mikrotik Quick Start Guide - Installation & Setup

In this article:

• What's in the Box
• Installation & Setup
• Troubleshooting

Note: If you are using your own Access Point (AP) or one different from Mikrotik, please reach out to our Support Team at [e-mail].

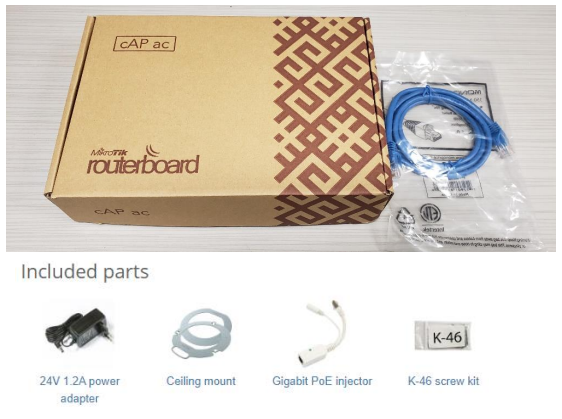

What’s in the Box

Installation & Setup

To install the Mikrotik device:

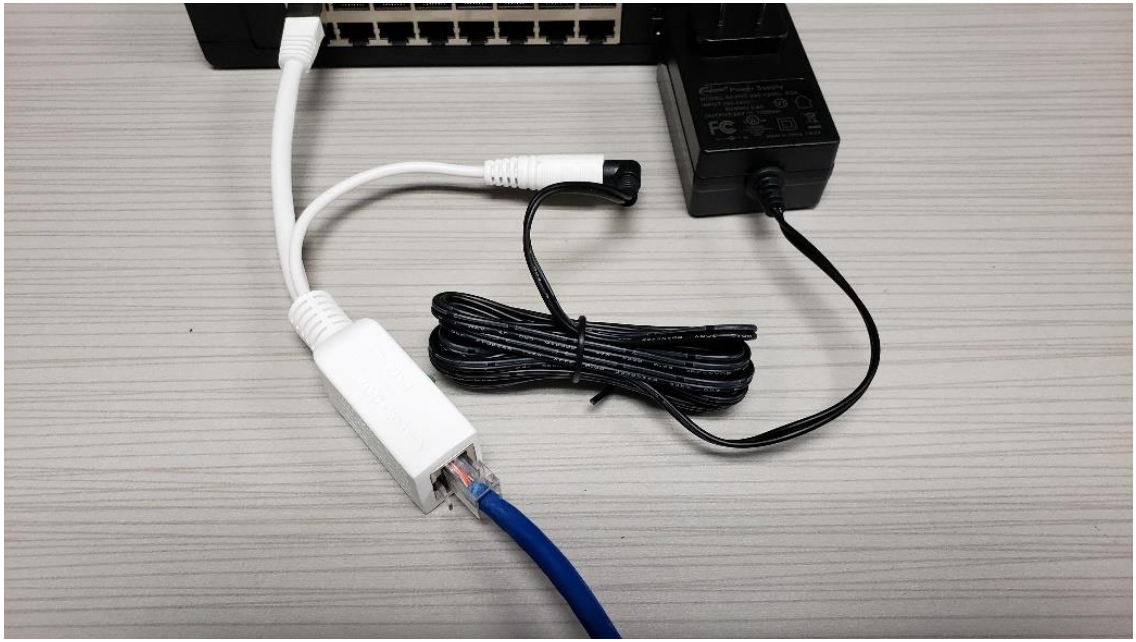

1. Plug the Network port of the white Y cord into your router.
2. Plug the power adapter into the Power port of the white Y cord. Don’t connect the power adapter to a power supply yet.
3. Plug an Ethernet cable into the LAN out port of the white Y cable, then into the Eth 1 - In port of the Mikrotik device.
4. Plug the power adapter into the wall or a chosen power supply.

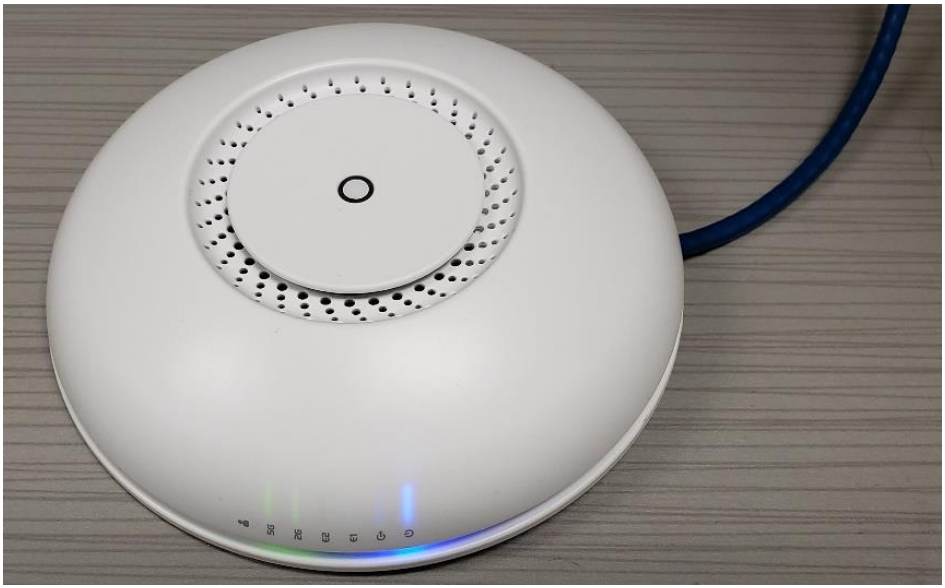

5. Look for the E1, 2G, and 5G lights to be green on the Mikrotik device.
6. Once the device is fully booted and online, you’ll see a new wireless network available (Example: !Spectrio Free Wifi).

Troubleshooting

• If the lights on the Mikrotik device aren't illuminated, ensure the cable connections are firm.
• If the lights on the Mikrotik device don’t illuminate after booting up for more than 10 minutes, contact Spectrio Support for assistance.

For questions or concerns, please reach out to our Support Team at [e-mail].
